Haymaker

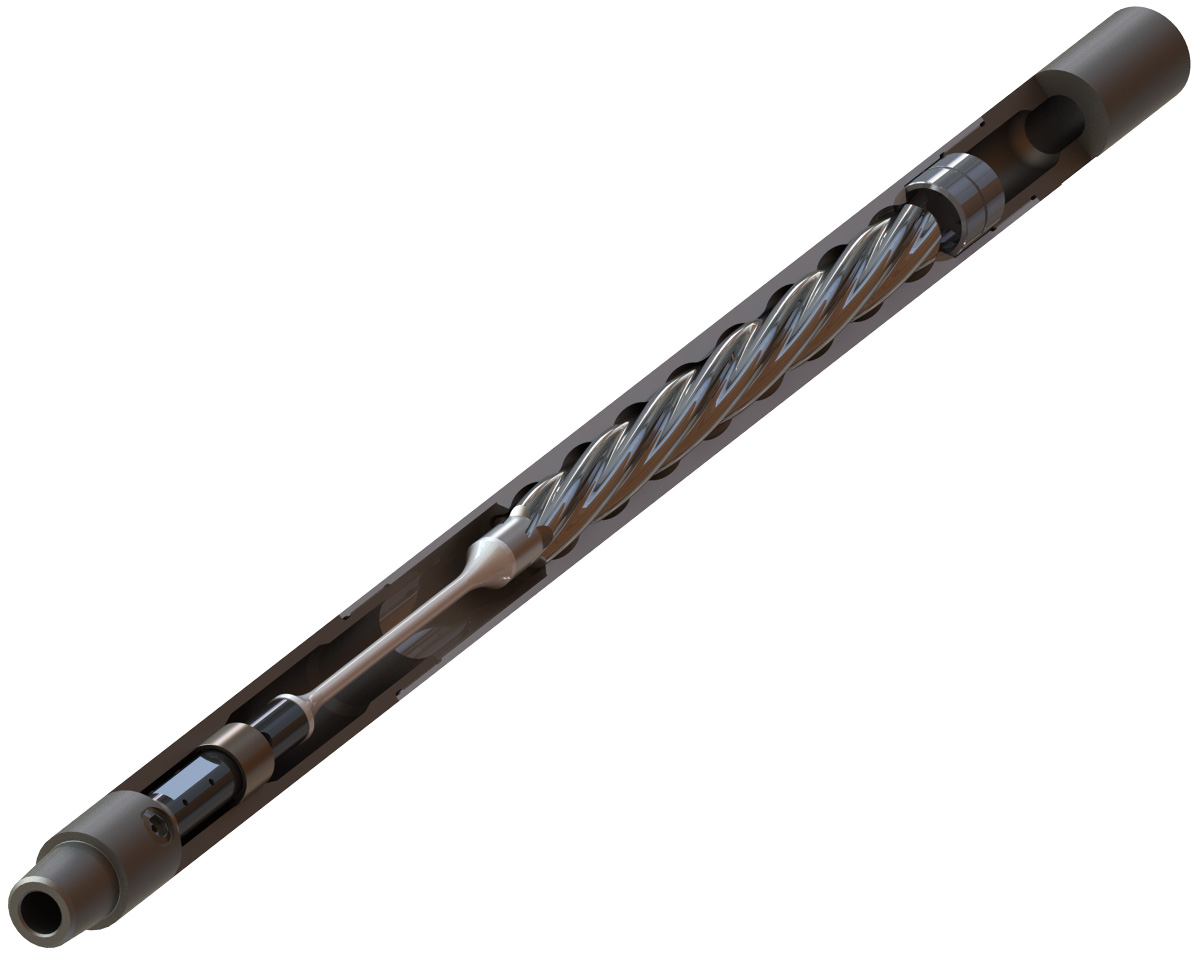

The Haymaker (formally known as the Completions Toe Tapper) is a coiled tubing friction reduction tool that uses a negative pressure pulse to create an axial force at a low frequency, resulting in a periodic fluid hammer effect which stimulates the coiled tubing to reduce frictional drag.
Applications
- Extended reach well stimulation operations
- Extended reach well intervention procedures
- Extended reach composite bridge plug milling
- Extended reach fracture hardware milling
- Extended reach toe preparation
- Extended reach sand clean-out
- Extended reach production logging
- Extended reach abrasive perforating
Overview
To achieve maximum tool efficiency, approximately 5%-8% of the fluid being pumped down the coil tubing is vented to the annulus through a nozzle near the bottom of the Haymaker. This venting generates a more efficient negative pressure pulse, which produces the fluid hammer effect responsible for breaking friction. The low frequency negative pressure pulse actuates the coiled tubing over a longer period, allowing the coiled tubing more time to move. The fluid venting also permits slightly higher pump rates, which in turn improves debris removal and well cleaning.
Technical Specifications
| Tool Size | 2.125” (54 mm) |
2.875” (73 mm) |
3.125” (79.28 mm) |
|---|---|---|---|
| MUL | 67” (1.70 m) |
58” (1.47 m) |
65.8” (1.67 m) |
| Weight | 45 lb (20 kg) |
105 lb (48 kg) |
132 lb (60 kg) |
| Flow Rate | 0.71-1.43 bpm (0.11-0.23 m3/min) |
1.2-4.0 bpm (0.19-0.63 m3/min) |
2.4-5.0 bpm (0.38-0.79 m3/min) |
| Temperature | 350°C (175o F) |
350°C (175o F) |
350°C (175o F) |
| Operating Frequency | 4-7 Hz | 5-8 Hz | 5-8 Hz |
| Differential Pressure | 400-800 psi (2,750-5,515 kPa) |
400-800 psi (2,750-5,515 kPa) |
400-800 psi (2,750-5,515 kPa) |
| Tensile Strength | 20,000 lbf (89 kN) |
78,000 lbf (347 kN) |
129,000 lbf (574 kN) |
| Torsional Strength | 1,250 ft-lb (1,695 Nm) |
3,500 ft-lb (4,745 Nm) |
3,800 ft-lb (5,152 Nm) |
| Threads | 1.5” AMMT (38.1 mm AMMT) |
2.375” PAC (60.3 mm PAC |
2.375” API REG (60.3 mm API REG) |
