DRILLING SYSTEM

The RotoSteer employs conventional drilling technology with the addition of a specialized drilling-based motor system as a method of drilling horizontal wells. The revolutionary alternative to rotary steerable allows the operator to utilize the benefits of a conventional BHA while at the same time, capitalizing on the advantages of continuous drill string rotation.

Download The RotoSteer PDF
Download The RotoSteer Case Study
Interactive Notes:

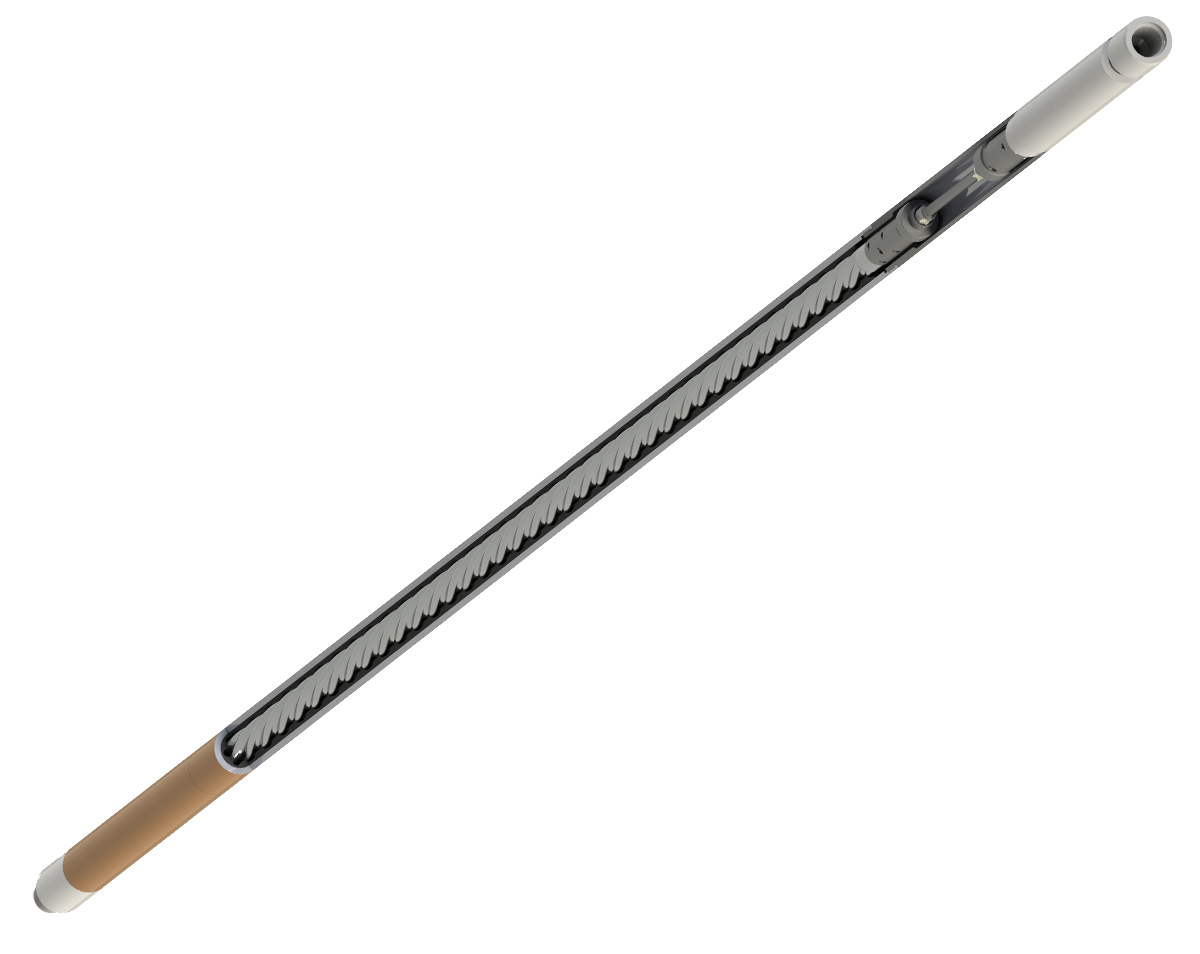

Hover over the bullet points on the product image to display information.

Watch The RotoSteer Demonstration Video
Watch The RotoSteer Animation Video

Overview

The RotoSteer system utilizes a conventional bottom hole assembly with the addition of a specialized drilling motor-based device. This system acts as a hydraulic clutch to produce torque from drill string rotation. This torque is then used to control and steer the BHA as it counteracts the torque generated from the drilling motor. As a purely mechanical device that performs like a “Point the Bit” system, the RotoSteer is a cost-effective method to drilling longer reach horizontal wells.

RotoSteer Benefits

Reduced cost to production in conventional drilling applications by improving ROP, reducing torque and drag and eliminating slides
Further cost savings in the completion of the well with reduced doglegs, improved borehole quality.
Simple installation and operation. The RotoSteer is installed above the BHA with no additional set up required.
No additional electronics compatible with existing MWD technologies
Easily adjustable for a variety of mud motors and drilling conditions
Limits torque output preventing the damaging effects of stalling the PDM
Uses familiar conventional drilling methods. Controlled by balancing rpm and WOB
